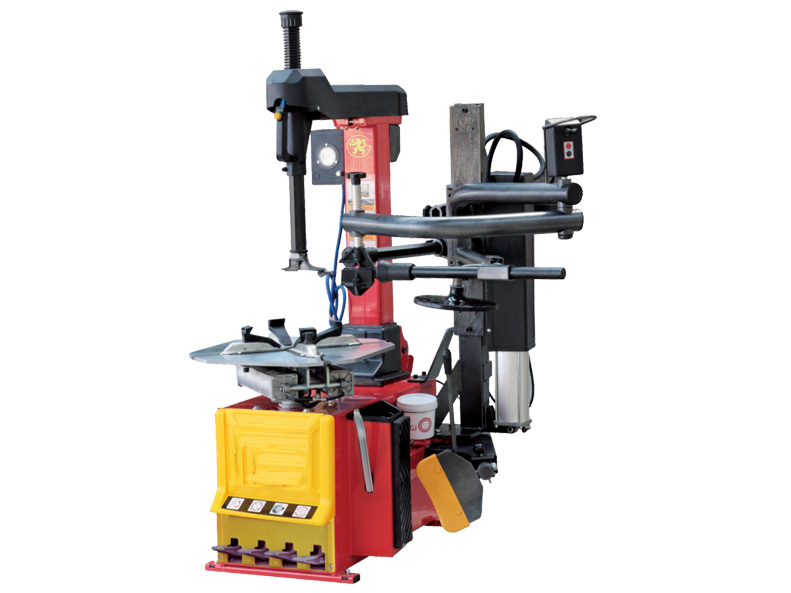

Automatic Tire Changer

In the process of using an automatic tire changer, the machine will put the lever on the groove of the hub automatically. Because of that, the workload of operators is reduced. The semi-automatic tire changer is widely applied to vehicles repair plants where the automation degree and labor costs are both high.

Parameter

Type	WM-TC001B	WM-TC001C	WM-TC001D
Power	1.1kw/0.75kw	1.1kw/0.75kw	1.1kw/0.75kw
Voltage	220v/380v	220v/380v	220v/380v
Operating air-pressure	0.7-0.8MPa	0.7-0.8MPa	0.7-0.8MPa
Max Tire Diameter	960mm	960mm	1040mm
Outside clamping range	10-22''	10-22''	12-24''
Inside clamping range	13-24''	13-28''	12-24''
Bead breaker shovel force	2500kg	2500kg	2500kg
Shipping Dimensions	1220900400mm	1220900400mm	1050850950mm
Net Weight	292kg	292kg	170kg
Overall Weight	367kg	367kg	215kg

Feature

1. This semi-automatic tire changer can mount and dismount tire with diameter of 40 inches.

2. The foot pedals is made of high-strength aluminum alloy, lightweight and durable.

3. Four clamping jaws are controlled by dual pneumatic clamping cylinders, which avoids damage of tires resulting from slipping.

4. Four-jaw clamping chuck is equipped with changeable plastic accessories to protect tires.

5. The capacity of bead breaker shovel can reach 2500kg, it can easily loosen any tire.
