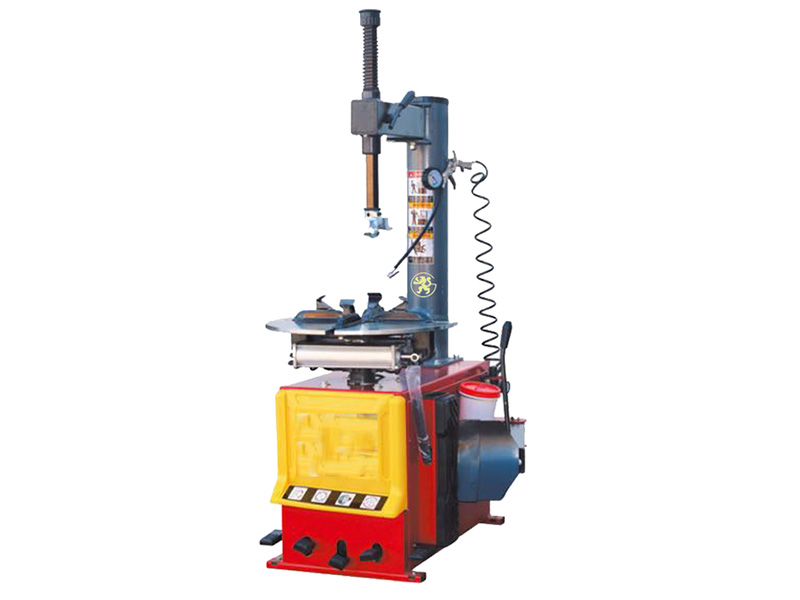

Semi-automatic Tire Changer

When using a semi-automatic tire changer, the lever needs to be put on the groove in the hub manually. However, the advantages of small installation space and low price let semi-automatic tire changer be widely applied to small vehicles repair shops.

Parameter

Type	WM-TC002A	WM-TC002B	WM-TC003C	WM-TC003D
Power	1.1kw/0.75kw	1.1kw/0.75kw	1.1kw/0.75kw	1.1kw/0.75kw
Voltage	220v/380v	110v/220v-1ph 220v/380v-3ph 50/60hz	220v/380v	220v/380v
Operating air-pressure	0.7-0.8MPa	0.7-0.8MPa	0.7-0.8MPa	0.7-0.8MPa
Max Tire Diameter	650mm	750mm	650mm	800mm
Outside clamping range	10-17''	13-24''	10-17''	10-22''
Inside clamping range	12-20''		12-20''	12-24''
Bead breaker shovel force	2500kg	2500kg	2500kg	2500kg
Shipping Dimensions	1050850950mm	1130950930mm	1050850950mm	1220900400mm
Net Weight	170kg	192kg	170kg	276kg
Overall Weight	215kg	242kg	215kg	336kg

Feature

1. This semi-automatic tire changer can mount and dismount tire with a diameter of 31 inches.

2. The foot pedals are made of high-strength aluminum alloy.

3. Four clamping jaws are controlled by dual pneumatic clamping cylinders, which prevents damage to tires resulting from slipping.

4. Four-jaw clamping chuck is equipped with changeable plastic accessories to protect tires.

5. The capacity of the bead breaker shovel can reach 2500kg, it can easily loosen any tire.
