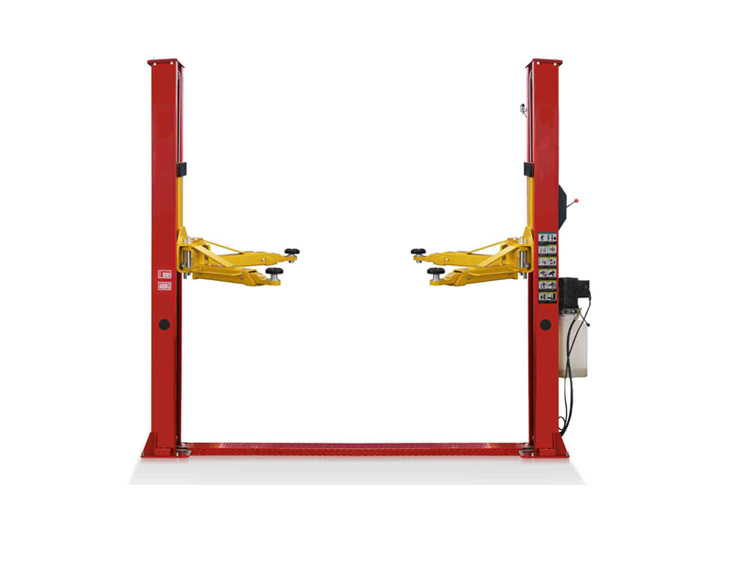

2 post car lifts operate with a lift capacity of up ton 4000kg. You can choose from asymmetric 2 post lifts, symmetric 2 post lifts, frame contact lifts, wheel-contact (drive-on) lifts, etc. Additionally, our customization services
mean we can provide you with machines tailored to your needs. We control the quality of each product and put customer requirements first. With various designs and outstanding technology, our 2 post car lifts have been widely
praised by clients.

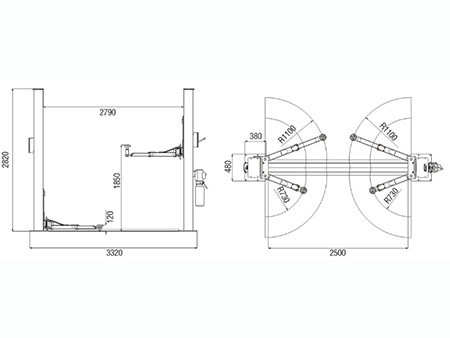

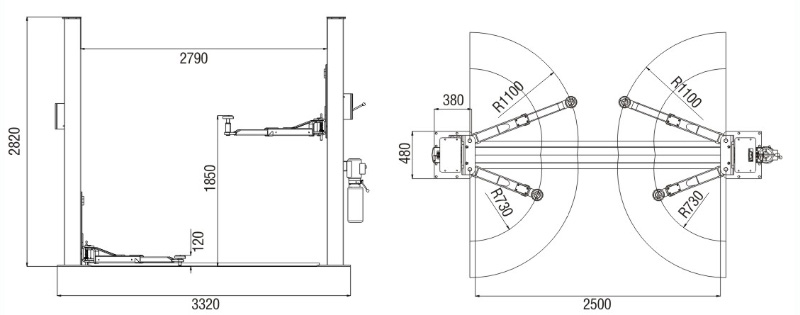

Parameter
Lift Capacity
4000kg
Lift Height
1850mm
Min. Height
120mm
Channel Distance
2500mm
Clear Distance between Columns
2790mm
Overall Width
3320mm
Lift Time
50-60s
Engine Power
2.2kw -380v or 2.2kw-220v
Rated Oil Pressure
24MPa
Overall Weight
565kg
Feature
1. With double-jointed or triple-jointed arms, two post car lift can serve cars with a wide range of vehicle chassis heights.
2. The adoption of a twin cylinder, high-strength chain and balance system of steel wire rope ensures the stability of the lifting process.
3. The machine can be unlocked on one side manually, and the lift position can be adjusted by operators.
4. Equipped with a protection device. The door fence prevent the car door from damaging, and the safety fence guarantee the safety of the operators.
