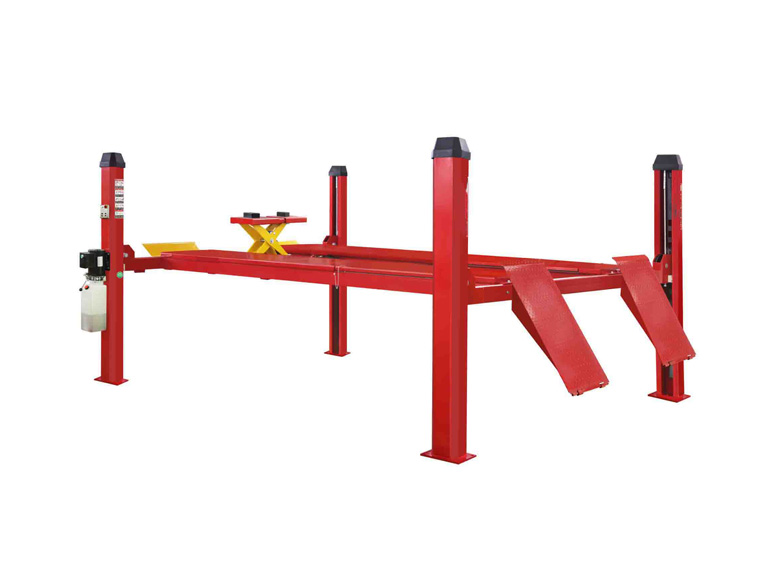

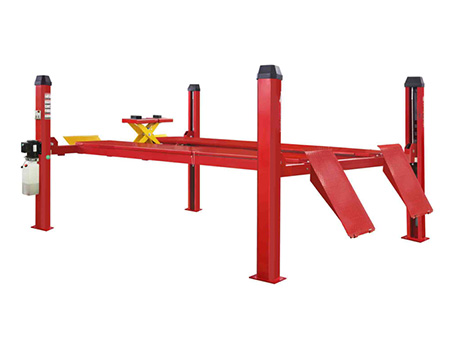

Our heavy duty 4-post car lift is a good choice for those with limited garage space. This kind of car lift features 4 hydraulic posts and a work platform. One car parks on the platform and is then lifted to a certain height. Then,
another car can be parked under the first car. Although 4-post car lifts are more expensive than other types, they are powerful and help small but busy vehicle repair shops to keep up with customer demands.
We provide high-quality heavy-duty 4-post car lifts with a carrying capacity range of 3500-5000kg. Each car lift has been fully tested before delivery.
Parameter
Type
WM-CLF01
Lift Capacity
3500kg/4000kg/5000kg
Lift Height
Master：1500mm Slave：350mm
Min.Lift Height
200mm
Lift Time
50-60s
Platform Length
4200mm/4500mm/5000mm
Platform Width
550mm
Engine Power
2.2kw-380v or 2.2kw-220v
Rated Oil Pressure
24MPa
Pneumatic Pressure
0.6-0.8MPa
Overall Weight
1200kg/1250kg/1300kg
Feature
1. Made of high-quality stainless steel with an electrostatic spraying process, the machine is beautiful and anticorrosive.
2. The distance of channel can be adjusted to adapt to vehicles with different wheel spans.

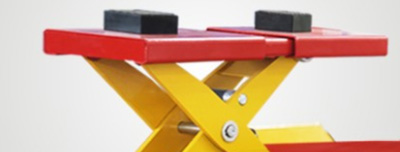

3. Equipped with a second lifting trolley to help operation.
4. The car can be locked on any position.

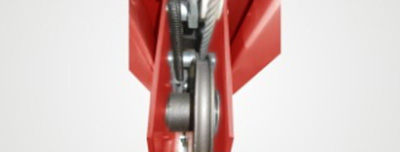

5. Equipped with control safety lock of steel wire rope to avoid breaking and ensure safe operation.

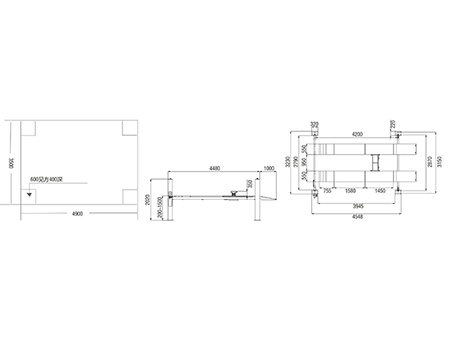

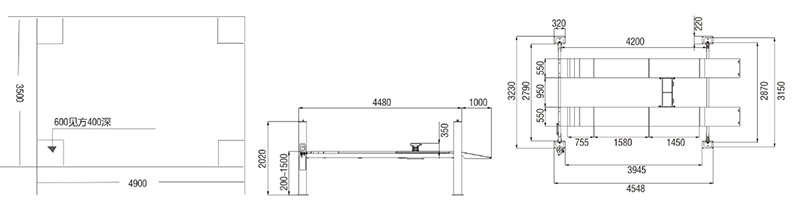

Plant layout
Operation training
Original spare parts supply
Maintenance report
