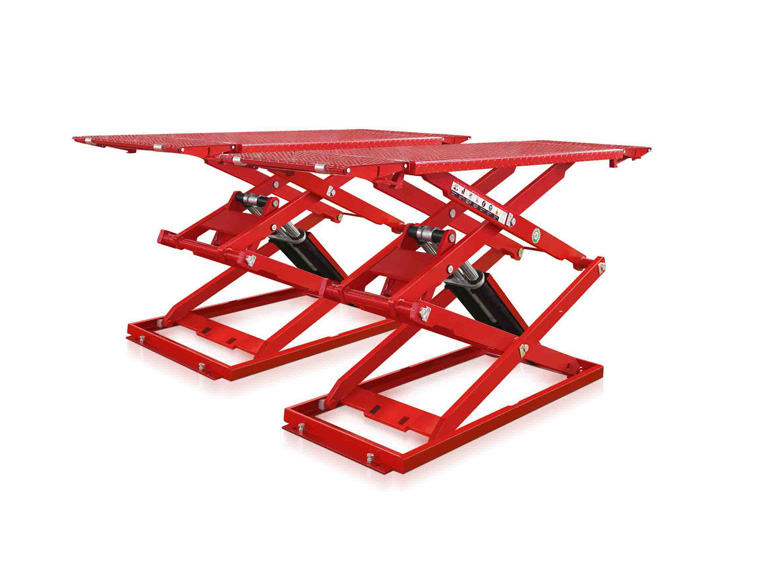

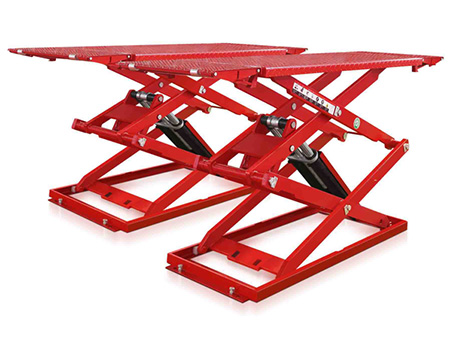

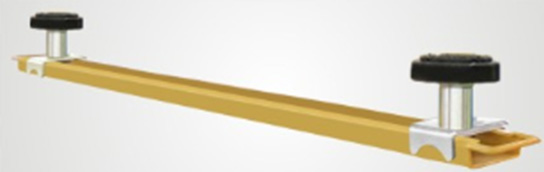

We have manufactured the 6600 lb. capacity scissor car lift for several years and hundreds of them have been purchased by customers all around the world. The portable lift easily raises cars weighing up to 6000 pounds as long as the operator puts the rubber block assemblies on in the right place. This operation will prevent damage to the bottom of the car. The scissor car lifts produced by WeiMing are thoroughly tested and each of them meet industry standards. We also provide customization to satisfy the additional needs of customers.
Type | WM-CLSM02 | WM-CLSM03 |
Lift Capacity | 3000kg | 3000kg |

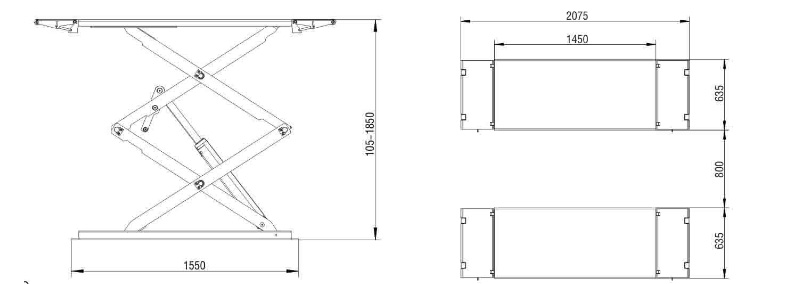

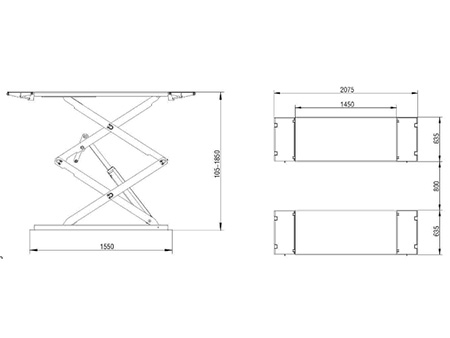

Lift Height | 1850mm | 1000mm |
Min. Lift Height | 105mm | 110mm |
Lift Time | 70-90s | 50s |
Platform Length | 1450mm | 1400mm |
Platform Width | 635mm | 300mm |
Engine Power | 3.0kw-380v or 3.0kw-220v | 3.0kw-380v or 3.0kw-220v |
Rated Oil Pressure | 24MPa | 24MPa |
Pneumatic Pressure | 0.6MPa-0.8MPa | 0.6MPa-0.8MPa |
Overall Weight | 850kg | 665kg |
1. Small installation area and easy storage.
2. Made of high-quality stainless steel and adopt electrostatic spraying process, which makes the machine beautiful and anticorrosive.

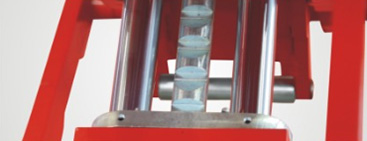

3. Multiple locking positions can make the car be locked on any location.
4. The single-point safety release makes this lift easy to operate and safe to use.

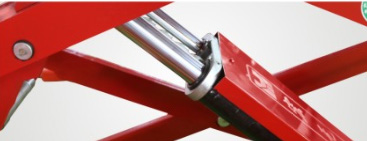

5. Adopt the leak-proof hydraulic cylinder with shunt to ensure that the car rise or fall at a constant speed.
6. Offer customized service according to client requirements.
