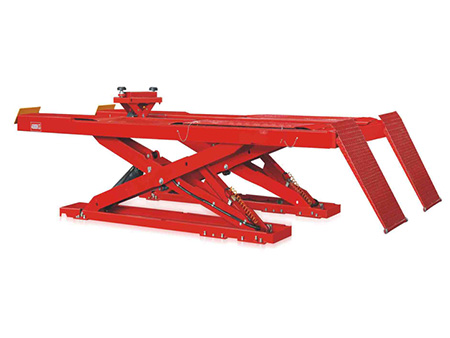

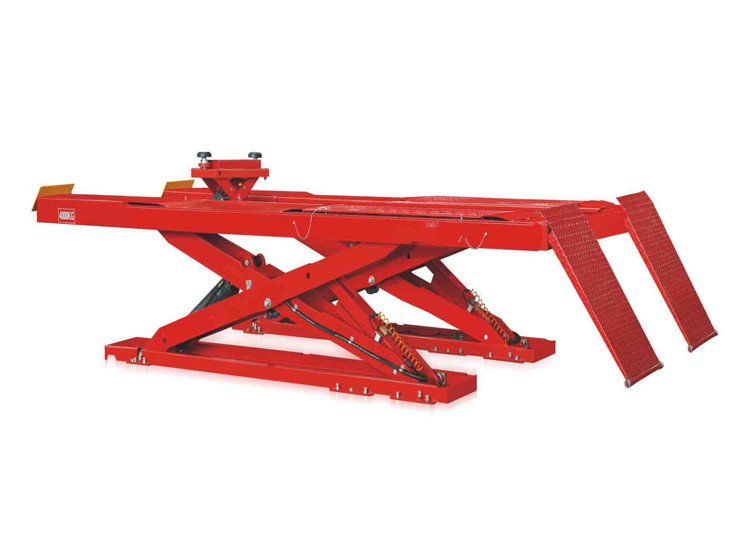

8800 lb. Capacity Scissor Car Lift

With a load capacity of 8800 pounds and a max lifting height of 1850mm, this scissor car lift provided by WeiMing is appropriate for the maintenance of various vehicle types. Besides that, the 8800 lb. capacity scissor car lift is parallel to the floor when it is not in use. The foldable structure makes it perfect for limited space. The scissor car lift is lightweight and equipped with pulleys for convenient positioning.

With multiple locking positions, this high-quality scissor car lift can lock the car in place at any height. You can enjoy comprehensive service if you purchase our lifts. For example, we will provide customers some accessories free of charge upon delivery. Please contact us if you want more information in detail, our professional team is always here to help.

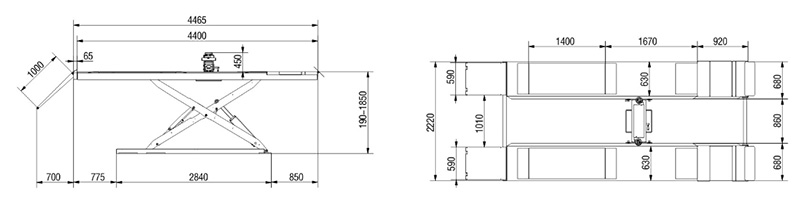

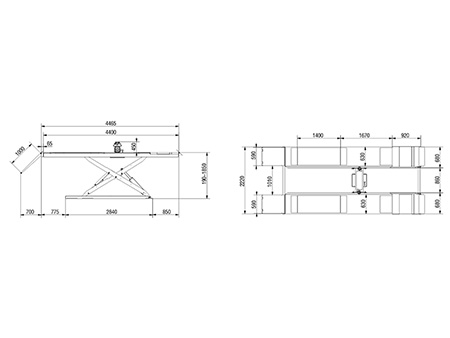

Parameter

Type	WM-CLBD03	WM-CLBD04	WM-CLBD05
Lift Capacity	4000kg	4000kg	4000kg
Lift Height	Master: 1850mm Slave: 450mm	Master: 1750mm Slave: 350mm	Master: 1700mm Slave: 450mm
Min. Lift Height	190mm	200mm	340mm
Lift Time	70-90s	70-90s	70-90s
Platform Length	4465mm	4500mm	4480mm
Platform Width	680mm	645mm	600mm
Engine Power	3.0kw-380v or 3.0kw-220v	3.0kw-380v or 3.0kw-220v	3.0kw-380v or 3.0kw-220v
Rated Oil Pressure	24MPa	24MPa	24MPa
Pneumatic Pressure	0.6MPa-0.8MPa	0.6MPa-0.8MPa	0.6MPa-0.8MPa
Overall Weight	2030kg	2320kg	1900kg
