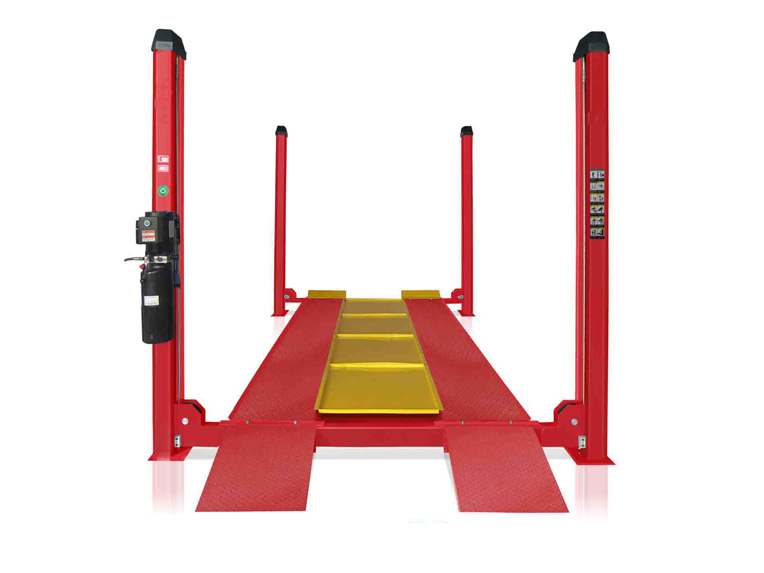

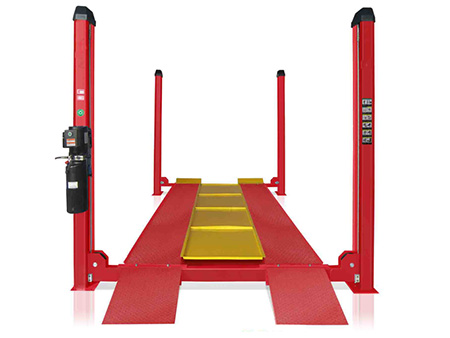

The 4-post car storage lift WM-CLF02 has a lift capacity of 4000 kg and is the perfect lift for repair shops with limited room. With the 4-post car storage lift, one parking area can park two cars. In addition, this car storage
lift is made of high-quality stainless steel and adopts an electrostatic spraying process, which makes the machine anticorrosive.
Parameter
Type
WM-CLF02
Lift Capacity
4000kg
Lift Height
2100mm
Min. Lift Height
200mm
Lift Time
50-60s
Platform Length
4000mm
Platform Width
550mm
Engine Power
2.2kw-380v or 2.2kw-220v
Rated Oil Pressure
24MPa
Overall Weight
1200kg
Feature
1. Floor type unlock device.

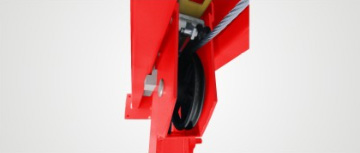

2. Control security lock of steel wire rope to avoid breaking and ensure operational safety.
3. 8 locking positions mean the car can be locked on any location.

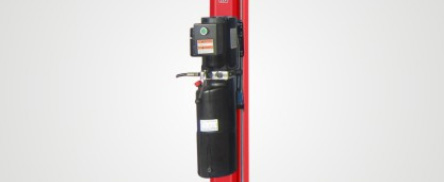

4. Hydraulic system adopts fixed displacement hydraulic pump to reduce energy consumption and heat loss within the system.
5. Leak-proof hydraulic cylinder with shunt to ensure that the car rises or falls at a constant speed.
