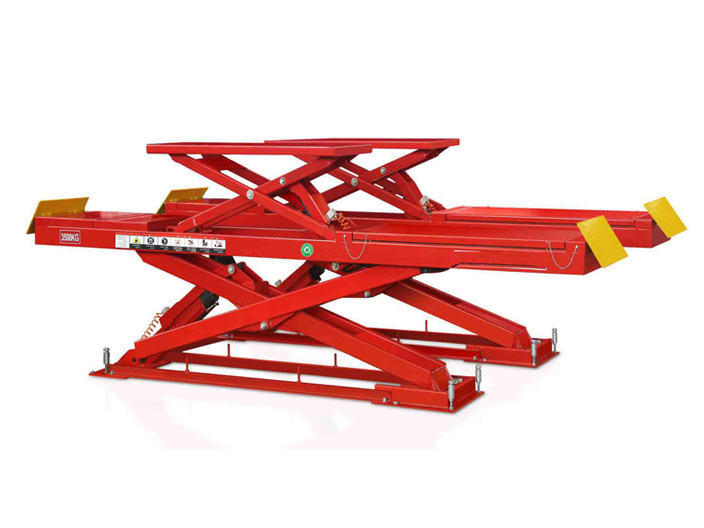

The 11000 lb capacity scissor car lift is an ideal mobile unit for auto repairs. It can lift a wide range of car types. The lift is great for bodywork, tire servicing, and more.
This car scissor lift needs a designated foundation before installation, and then it can descend parallel to the ground. It is a good choice if you want save space. In addition, this car storage lift is made of high-quality stainless
steel that has been electrostatically sprayed to eliminate risk of corrosion.

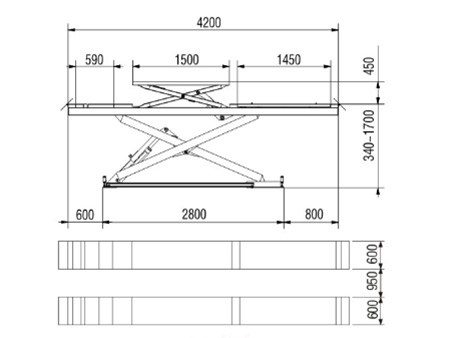

Parameter
Type
WM-CLBG01
WM-CLBG02
Lift Capacity
3500kg/4000kg/5000kg
5000kg
Lift Height
Master1700mm Slave450mm
Master2100mm Slave480mm
Min. Lift Height
340mm
360mm
Lift Time
70-90s
70-90s
Platform Length
4200mm/4500mm/5000mm
5000mm
Platform Width
600mm/600/630mm
630mm
Engine Power
3.0kw-380v or 3.0kw-220v
3.0kw-380v or 3.0kw-220v
Rated Oil Pressure
24MPa
24MPa
Pneumatic Pressure
0.6MPa-0.8MPa
0.6MPa-0.8MPa
Overall Weight
1760kg/1900kg/2500kg
2500kg
Feature
1. When losing electrical power, the scissor lift can be dropped manually.
2. Hydraulic system adopts fixed displacement hydraulic pump to reduce energy consumption and heat loss.
3. Leak-proof hydraulic cylinder with shunt to ensure that the car rise or fall at constant speed.
4. The single-point safety release makes this lift easy to operate and safe.
